Road Safety Guardrail Roll Forming Machine

  • Road Safety Guardrail Roll Forming Machine
  • Road Safety Guardrail Roll Forming Machine
  • Road Safety Guardrail Roll Forming Machine
  • Road Safety Guardrail Roll Forming Machine

Road Safety Guardrail Roll Forming Machine

    Payment Type: L/C,T/T,D/P
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: naked packing
    Productivity: 8m/min
    Brand: zhongtuo
    Transportation: Ocean,Land,as customer requirem
    Place of Origin: China
    Supply Ability: 30 sets per month
    Certificate: CE ISO9001

Basic Info

Model No.: ZT-005-52

Product Description

Road Safety Guardrail Roll Forming Machine

Function:

Road Safety Guardrail Roll Forming Machine is the equipment to press, through rolling and cold bending, the colored steel sheet with thickness of 0.5-4.5mm into two waves pattern sheet. The machine is suitable for the use of road barrierand has the following characteristic: light weight, high strength, rich colors and being earthquake-proof and fireproof, etc.

Road Safety Guardrail Roll Forming Machine Process Flow:

Uncoiling→Feeding material into machine→Punching → Roll forming→Measuring length→ Auto cutting→Products receiving

Road Barrier & Guardrail Making Machine


Final products and profile:

Road Barrier & Guardrail Making Machine


Components of Road Safety Guardrail Roll Forming Machine

Suitable Material Type:GI/PPGI/AL

coil width:488mm

Length Tolerance:±2mm/6m

Working Speed:25 m/min Standard machine

Total Power: 30KW

Total Weight: About 15T Up to final design

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Decoiler

Coil feeding part of Road Safety Guardrail Roll Forming Machinee

Usage: Put the raw material leveling by 9 rollers four up and five down. GCR15 45#steel raw materials with quenched treated ,diameters is 95mm.(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

feeding

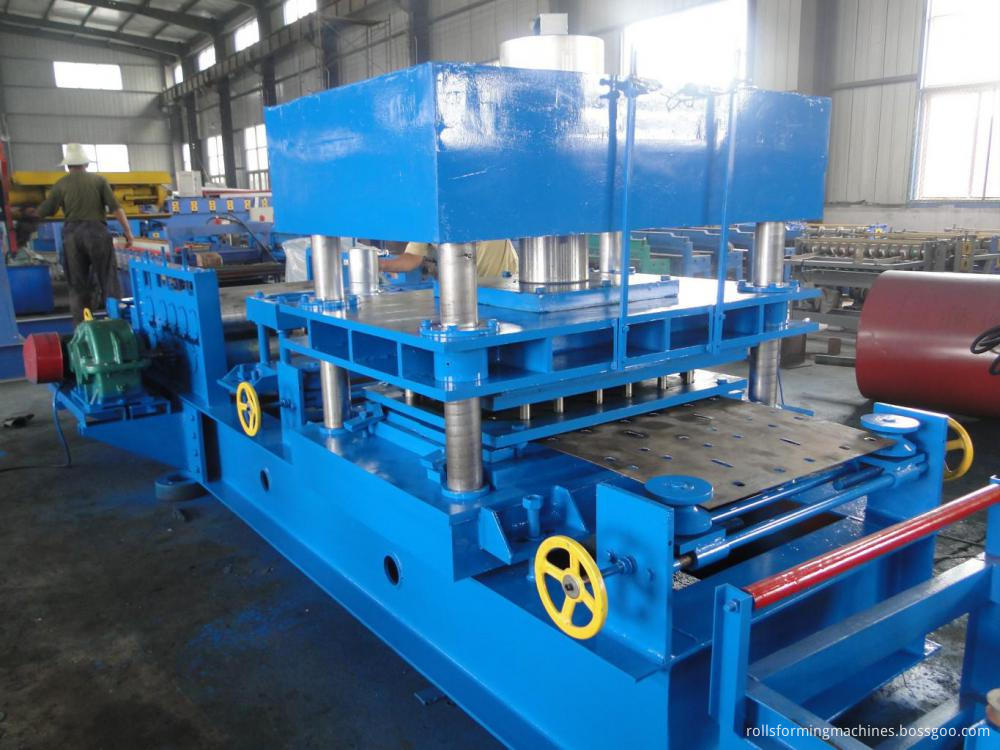

Punching device

Hydralic punching .Raw materail cr12 treated with quenched .

punching

Feeding rack

table for Road Barrier & Guardrail Making Machine

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

roll forming for Road Barrier & Guardrail Making Machine


Length of the main part:18500*1200*1500mm

Weight of main part:About 15 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

Frame:Middle plate welded ,Memorial arch frame type

Frame thickness:25mm

Drive mode:case of different speed

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

Diameter of shafts:φ95mm

Number of rollers:16rollers

Main power:30kw (Cycloidal planetary gear speed reduce

Drive mode : case of different speed

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.

cutting for Road Barrier & Guardrail Making Machine

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pc


Some pictures for Road Safety Guardrail :

Road Safety Guardrail Roll Forming Machine

Road Safety Guardrail Roll Forming Machine
